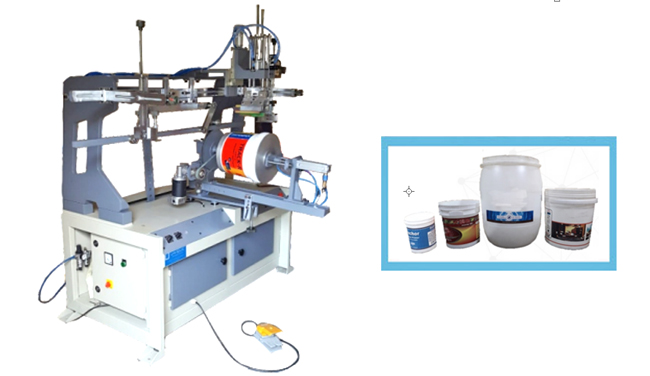

USP SERIES

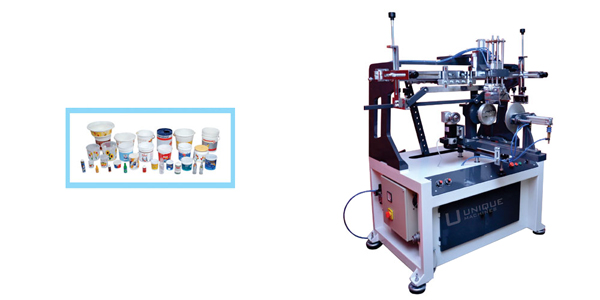

Semi Auto Screen Printing Machine

Semi Automatic Screen Printing Machine for Round, Oval & Flat Shape Article.



Machine Features :

1. Machine Speed run on Variable Speed Control with VFD. (Siemens)

2. Suitable for Round, Tapper, Oval Shape Article.

3. Auto Position (Reqesration) For Multicolor Printing.

4. Micro Adjustment of X, Y, Z axis of Screen settings.

5. Quick Change Over with Easy Adjustment in a Short Time.

6. Machine Run On Auto And Manual Mode.

PARAMETERS USP – 200 USP – 300 USP – 500
Print Size (Maximum) 200mm DIA x 225mm Height 300mm DIA x 350mm Height 500mm DIA x 400mm Height
Power Used (Approx) 1 KW | 220 VAC, Single Phase 2 KW | 220 VAC, Single Phase 2 KW | 220 VAC, Single Phase
Speed (Approx) 1200 to 1400 Impressions Per Hr 500 to 600 Impressions Per Hr 400 to 500 Impressions Per Hr
Air Pressure 4 to 5 Kg/Cm2 4 to 5 Kg/Cm2 4 to 5 Kg/Cm2
Weight (Approx) 450 Kg 600 Kg 650 Kg




PARAMETERS
Maximum Print Size
Power Requirement
Maximum Speed
Air Pressure
Machine Dimensions (Outline) mm
Weight
USP – 200
200mm Dia x 225mm Height
1 KW / 220 V AC, 1 Phase
1400 Impressions Per Hour Approx
4 to 5 kg / Cm2
(L)1400x(W)1400x(H)1675 Approx
520 kg Approx



PARAMETERS
Maximum Print Size
Power Requirement
Maximum Speed
Air Pressure
Machine Dimensions (Outline) mm
Weight
USP – 300
300mm Dia x 350mm Height
1.5 KW / 220 V AC, 1 Phase
600 Impressions Per Hour Approx
4 to 5 kg / Cm2
(L)1575x(W)1525x(H)1675 Approx
550 kg Approx



PARAMETERS
Maximum Print Size
Power Requirement
Maximum Speed
Air Pressure
Machine Dimensions (Outline) mm
Weight
USP – 500
500mm Dia
1.5 KW / 220 V AC, 1 Phase
300 Impressions Per Hour Approx
4 to 5 kg / Cm2
-
650 kg Approx
