USP SERIES

USP SERIES

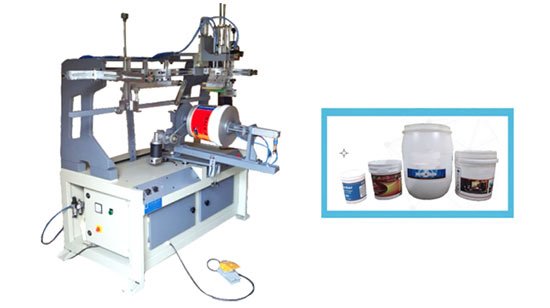

Semi Auto Screen Printing Machine

Semi Automatic Screen Printing Machine for Round, Oval & Flat Shape Article.

  • Machine Speed run on Variable Speed Control with VFD. (Siemens)
  • Suitable for Round, Tapper, Oval Shape Article.
  • Auto Position (Registration) For Multicolor Printing.
  • Micro Adjustment of X, Y, Z axis of Screen settings.
  • Quick Change Over with Easy Adjustment in a Short Time.
  • Machine Run On Auto And Manual Mode.

USP 200

PARAMETERS VALUES
Maximum Print Size
200mm Dia x 225mm Height
Power Requirement
1 KW / 220 V AC, 1 Phase
Maximum Speed
1400 Impressions Per Hour Approx
Air Pressure
4 to 5 kg / Cm2
Machine Dimensions (Outline) mm
(L)1400x(W)1400x(H)1675 Approx
Weight
520 kg Approx

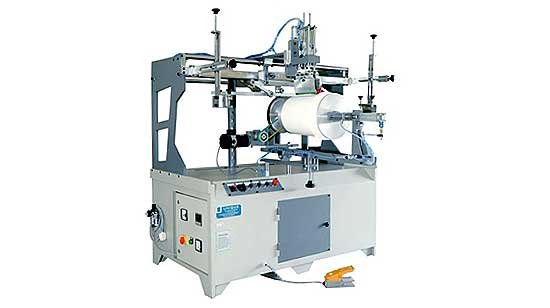

USP 300

PARAMETERS VALUES
Maximum Print Size
300mm Dia x 350mm Height
Power Requirement
1.5 KW / 220 V AC, 1 Phase
Maximum Speed
600 Impressions Per Hour Approx
Air Pressure
4 to 5 kg / Cm2
Machine Dimensions (Outline) mm
(L)1575x(W)1525x(H)1675 Approx
Weight
550 kg Approx

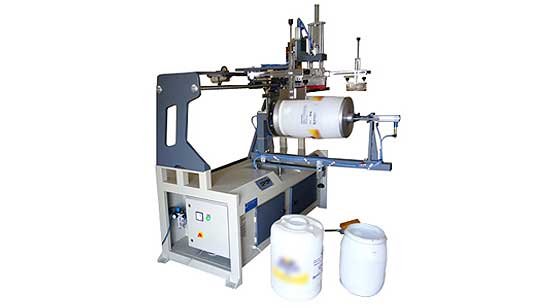

USP 500

PARAMETERS VALUES
Maximum Print Size
500mm Dia
Power Requirement
1.5 KW / 220 V AC, 1 Phase
Maximum Speed
300 Impressions Per Hour Approx
Air Pressure
4 to 5 kg / Cm2
Machine Dimensions (Outline) mm
–
Weight
650 kg Approx
